Before you can even think about fixing a power window, you have to play detective and figure out what’s actually broken. The good news? The most common culprits are often the easiest to check, like a simple blown fuse or a faulty switch. Nailing down the problem upfront can save you from needlessly tearing your entire door apart.

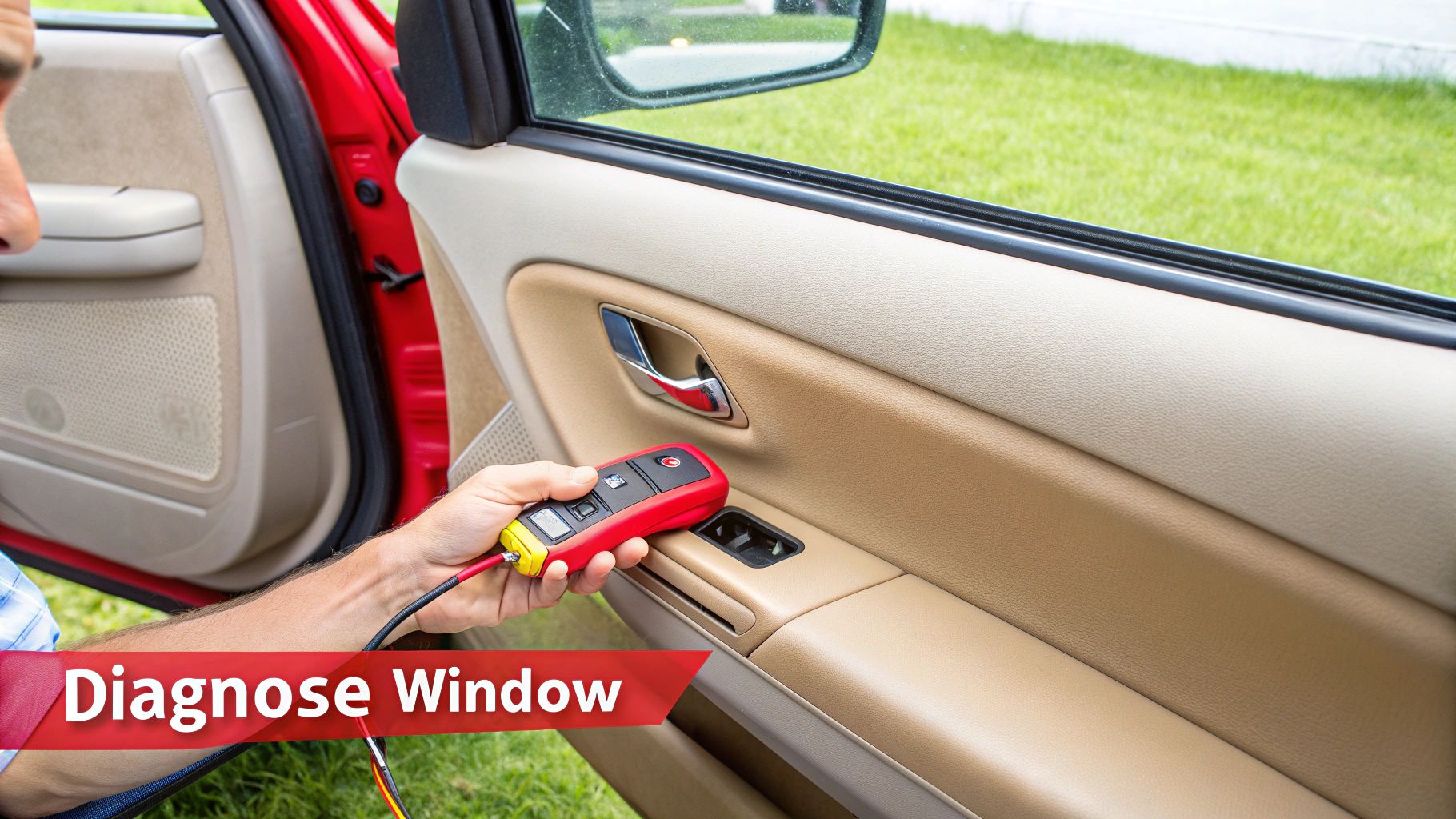

Diagnosing Your Power Window Problem
When a car window gets stuck, it’s not just an annoyance—it's a real security risk. That's why a proper diagnosis is the first and most critical step. Jumping straight into dismantling the door panel without knowing the root cause is a surefire way to get frustrated and waste a perfectly good afternoon.
By starting with the simplest potential issues, you can methodically rule things out before committing to a bigger, more involved repair. It’s a process that saves effort and builds your confidence as you zero in on the real problem.
Start With the Obvious Suspects
Before you grab a single tool, run through a few quick checks right from the driver's seat. These simple tests often point directly to the source of the failure without any disassembly required.
- Test All the Switches: Try to operate the problem window using its own switch and then the master switch on the driver's door. If it works with one but not the other, you've almost certainly found your culprit—a bad individual switch.
- Check the Other Windows: If none of the windows are working, the problem is bigger than just one door. This usually points to a blown main fuse, a faulty master switch, or even just the "window lock" button being accidentally pressed.
- Listen Carefully: Put your key in the ignition and turn it to the "on" position (don't start the engine). Now, press the window switch and listen closely. Can you hear a faint click or a low humming sound coming from inside the door? If so, that's great news.
A sound, even without any movement, tells you the switch and fuse are doing their job and sending power to the window motor. This simple "ear test" strongly suggests the problem is mechanical—either the motor itself has failed or the regulator assembly is jammed. If you hear complete silence, the issue is almost certainly electrical.
Key Takeaway: Silence is your biggest clue. If you press the switch and hear absolutely nothing, your problem is electrical (fuse, switch, or wiring). If you hear a click or whir, the motor is getting power, and the issue is mechanical (motor or regulator).
To help you get started, here's a quick reference table.
Quick Power Window Troubleshooting
Use this table to quickly identify your power window issue and the first diagnostic step to take.
| Symptom | Most Likely Cause | Your First Move |
|---|---|---|
| No windows work | Blown fuse or faulty master switch | Check the main power window fuse in your fuse box. |
| One window doesn't work from any switch | Bad window motor or regulator | Listen for a click/hum from the door when you press the switch. |
| Window works from master switch only | Faulty individual door switch | Plan to test and likely replace the individual switch. |
| Window goes down but not up | Bad switch or failing motor | Test the switch first; it's the more common point of failure. |
| Window is slow or makes grinding noises | Failing motor or regulator | The mechanical parts are likely worn out and need replacement. |
This table should help you narrow down the possibilities before you start taking things apart.
Ruling Out Electrical Gremlins
If your ear test pointed to an electrical issue (total silence), your next stop is the fuse box. Your car's owner's manual will have a diagram showing exactly which fuse protects the power window circuit. Pull it out and inspect it—a broken filament inside is the tell-tale sign of a blown fuse.
Replacing a fuse is a five-minute fix that costs next to nothing. But be warned: if the new fuse blows immediately, you're dealing with a short circuit somewhere in the wiring, and that will require a bit more investigation to track down.
Power windows have become so common that they're now a routine repair item. The global power window market was valued at a massive USD 15.46 billion, and as our cars get older, repairs for motors, switches, and regulators are becoming a huge part of the automotive aftermarket. As vehicles age, the demand for these fixes is only going to climb. You can explore more data about this growing market trend to see just how common these jobs are becoming.

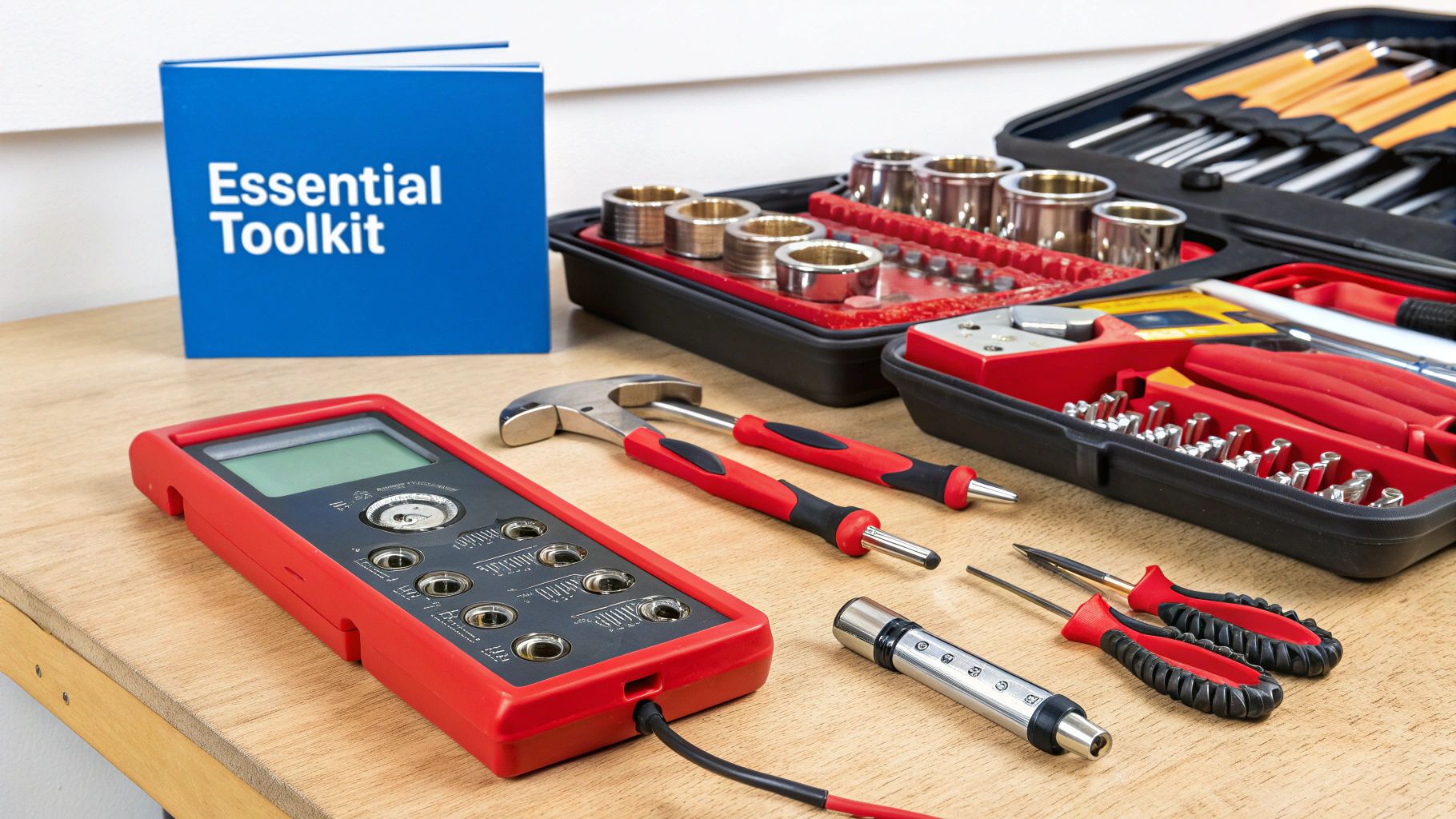

Assembling Your Essential Tool Kit
Trying to fix a power window without the right tools is a classic recipe for frustration. It's the fast track to broken clips, scratched trim, and a job that takes three times longer than it should. With the right gear, however, this project becomes a totally manageable weekend task.
Let's walk through exactly what you need. Think of this less as a shopping list and more as a breakdown of why each tool is critical. Getting everything ready before you start means no frantic trips to the auto parts store with your door panel half-off.
The Non-Negotiable Basics
For any power window job, some tools are just fundamental. Trying to work without them will either stop you in your tracks or, worse, cause damage to your car's interior.
- Trim Removal Kit: I can't stress this one enough. These plastic pry tools are your best friends for safely popping off delicate interior panels. They’re designed to get under clips without gouging the plastic or scratching your paint. Please, don’t use a screwdriver—it’s a rookie mistake that almost always leaves a permanent mark.
- Socket and Ratchet Set: You'll be using this for the main mechanical work. The bolts holding the window regulator and motor in place are very often 10mm or 12mm, but having a basic metric set on hand means you won't get stuck if you run into an odd size.
- Screwdriver Set: You’ll need a good set of Phillips and flathead screwdrivers. Car manufacturers love to hide door panel screws behind little covers, inside the door pull handle, or under the armrest.
These core items are what you'll use for the bulk of the disassembly and reassembly.
Pro Tip: Grab a magnetic parts tray. It’s cheap, and it’s a lifesaver. When you're pulling small screws and bolts from inside a dark door panel, it’s ridiculously easy to drop one into the bottom of the door. A magnetic tray keeps every single fastener safe and accounted for.
Tools for Electrical Diagnosis
If you suspect an electrical problem is the real culprit, you'll need a way to chase the voltage. These tools will help you pinpoint exactly where the power is getting cut off.
A simple 12V test light is often all you need. It’s perfect for quickly checking if there’s power getting to the switch and the motor connector.
If you want to get more detailed, a multimeter is the way to go. It not only shows you the exact voltage but can also check for continuity, which is fantastic for hunting down a broken wire somewhere in the harness.
Getting the right equipment doesn't have to break the bank. You can find high-quality, specialized automotive repair tool kits that bundle everything for this project and many others. Building out your tool collection over time is one of the best investments you can make, saving you a fortune in shop labor down the road.

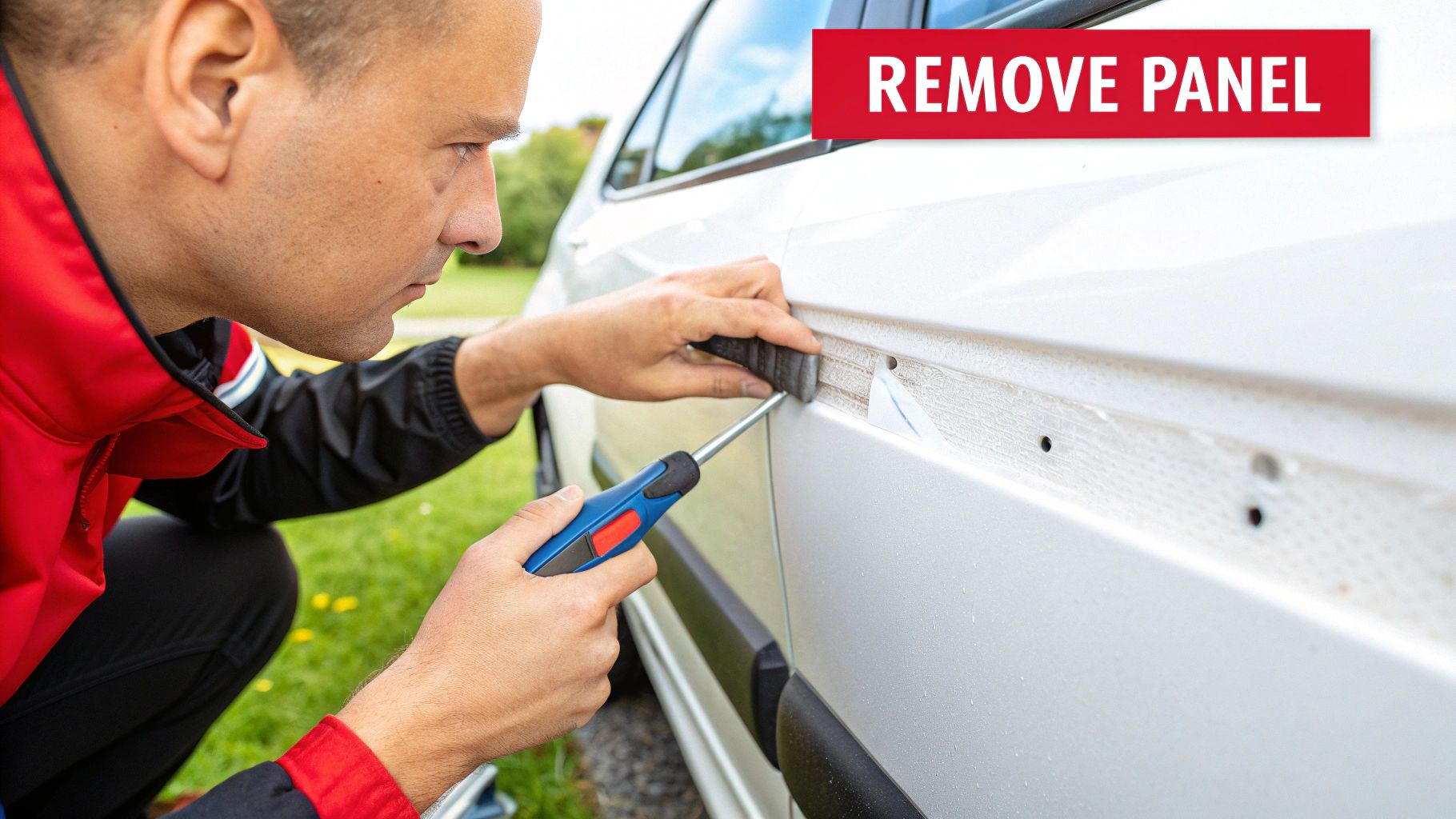

Removing the Door Panel Without Damage
This is the part of the job that stops a lot of people cold. The idea of pulling a big, finished piece of your car's interior off can be intimidating, but it’s much easier than it looks if you’re methodical about it. The secret is patience and knowing where manufacturers love to hide fasteners.
Rushing this step is the fastest way to break plastic clips, scratch your trim, or snap a delicate wiring connector. Just take your time, make sure you have good lighting, and remember that every door panel is designed to come off for service.
The Great Screw Hunt
Before you even think about prying, you have to go on a bit of a treasure hunt for screws. Car makers are absolute masters at tucking these away. If you miss even one, you’re almost guaranteed to crack the panel when you start pulling.
Here are the most common hiding spots to check:
- Inside the Door Handle Recess: Feel around inside the cup you use to pull the door shut. There's often a small plastic cover at the bottom hiding a screw.
- Behind the Interior Door Lever: Check for a small screw or a pop-off cover right behind the handle you use to open the door.
- Under the Armrest: Some models hide screws beneath a little rubber mat or a trim piece right on the armrest.
- Around the Speaker Grille: On some cars, you’ll find screws along the outer edge of the main door speaker.
Gently use a small flathead screwdriver or your trim tool to pop off any of these little covers. Once you're certain all the screws are out, you can get ready to tackle the clips.
Mastering the Art of the Pop
The main thing holding your door panel on is a series of plastic clips that pop into holes in the metal door frame. Your plastic trim removal tool is designed specifically for this—to release the clips without breaking them.
Start at a bottom corner of the door. Wedge your widest trim tool between the panel and the door frame until you feel it bump up against a clip. Now, give it a gentle but firm pry outward. You’ll hear a distinct pop when the clip lets go.
Real-World Tip: Don't try to rip the whole panel off in one go. Work your way methodically around the bottom and up the sides, popping one clip at a time. The top edge of the panel is almost always hung on the window sill like a hook, so it comes off last by lifting the panel straight up.
Disconnecting Wires and Cables
Once the panel is loose, don’t just yank it away. It’s still connected by a leash of wires and at least one mechanical cable. I usually prop the panel up with my knee or a small stool to avoid putting any strain on those connections.
You’ll see electrical connectors for the window switch, speakers, and maybe a courtesy light. Most of these have a little locking tab you have to press down before they'll pull apart. And remember: never pull on the wires themselves. Always grab the plastic connector.
The last thing is the door handle cable. This usually involves unhooking a small plastic clip holding the cable's outer sleeve, then wiggling the small metal ball at the end of the cable out of the handle's lever. If you need a better visual, our detailed guide on how to remove a car door panel has some great examples that make this step much clearer.
With everything disconnected, you can finally set the panel aside somewhere safe. Now you’ve got a clear shot at the window regulator and motor inside the door.
Replacing the Window Regulator and Motor
Alright, with the door panel off and safely out of the way, you're now staring at the inner guts of the door. This is where the real work happens. You’re not just swapping a small part; you’re replacing the entire window regulator and motor assembly, which is the muscle behind your power window.
The process boils down to a few key stages: carefully securing the window glass so it doesn't crash down, unbolting the old assembly, and then patiently maneuvering the new one into that tight space. It's more about being methodical than anything else. The whole point is to do it right the first time, so you don't have to tear this door apart again.
Securing the Window Glass
Before you even think about grabbing a wrench, your number one priority is to secure that pane of glass. The second you disconnect it from the regulator, the only thing stopping it from a rapid, shattering descent to the bottom of the door is you.
A few strips of good, strong tape are your best friend here. Don't cheap out.
- First, manually push the window up until it's almost fully closed.
- Next, run two or three long strips of strong painter's tape or duct tape completely over the top of the door frame.
- Make sure you stick the tape firmly to both the inside and outside of the glass. You're essentially creating a sturdy sling to hold it in place while you work below.
A Lesson Learned the Hard Way: Trust me on this—don't skimp on the tape. I once watched a guy try to hold a heavy window with one flimsy piece of masking tape. The sound of that glass shattering inside the door is something you never want to hear. Use quality tape, and use more than you think you need.
Removing the Old Assembly
With the glass safely suspended, you can turn your attention to getting that old, busted assembly out. You’ll see the regulator—a network of metal tracks, cables, and pulleys—bolted directly to the door's inner structure. The motor is usually mounted right onto it.
Start by finding the motor's electrical connector and unplugging it. There’s a small plastic tab you'll have to press to get it to release. Now, locate the bolts that clamp the glass to the regulator. You might have to carefully peel back and reapply your tape to lower the window just an inch or so to access these bolts through the service holes in the door.
Once the glass is free, you can unbolt the entire regulator from the door. There are typically four to six bolts holding the assembly in place. As you take out that last bolt, be ready to hold the weight of the assembly. Then, you just have to carefully snake the whole thing out through the largest opening in the door frame. It can feel like a game of Tetris, so be patient and find the right angle.

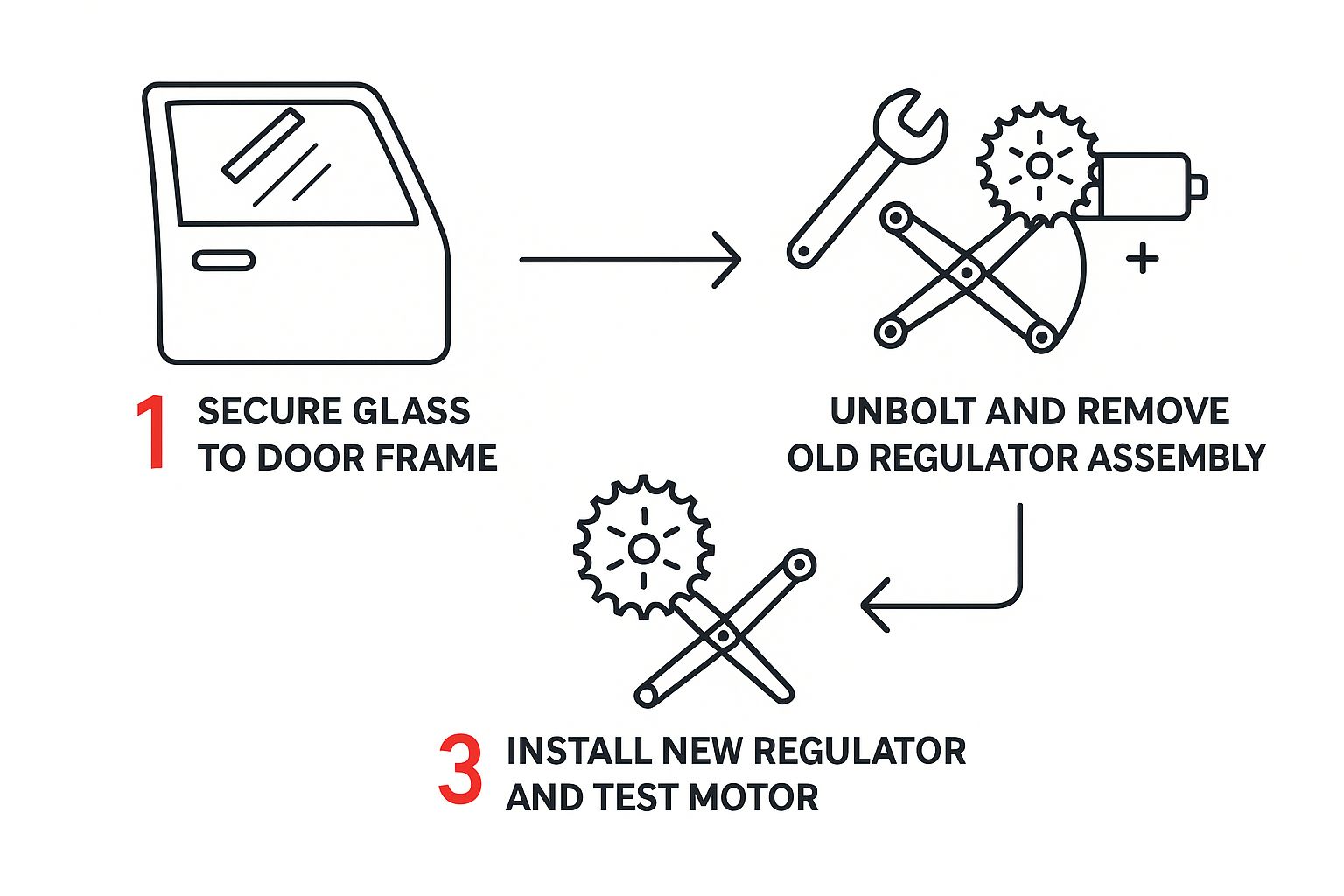

This helpful infographic breaks down the core replacement process into three clear visual steps.
As you can see, securing the glass comes first, followed by a methodical removal and a crucial test before you button everything back up.
Installing and Testing the New Part
Getting the new regulator and motor assembly into the door is pretty much the reverse of taking the old one out. A good tip is to loosely thread all the mounting bolts first. This holds it in place while you get everything aligned, and then you can go back and tighten them all down securely.
Now for the most important step before you go any further: test the motor. Don't wait until the door panel is back on. Just temporarily plug the master switch from the door panel back into its wiring harness. Plug in the new motor, turn the car's ignition to the "on" position (without starting the engine), and run the new motor up and down with the switch.
Confirming it works now saves you the massive headache of realizing something is wrong after you've already put everything back together. Once you’ve confirmed it’s working, you can carefully lower the glass back onto the regulator clamps and tighten the bolts, making sure the glass is level and seated properly.
Keep in mind that the quality of your replacement part really matters here. This isn't a part you want to replace again in a year. The global automotive power window motor market was valued at around USD 8.8 billion for a reason—these parts wear out. Choosing a durable, well-made replacement is key. If you're weighing your options, our guide on OEM vs. aftermarket parts can help you decide what’s best for your car and your wallet.
After checking that the glass travels smoothly all the way up and down, you're on the home stretch. Reattach the plastic vapor barrier, reconnect all the electrical plugs and the door handle cable, and carefully pop the door panel back into place.
Even with a perfect installation, you might run into a snag. This quick troubleshooting table covers the most common post-install issues I've seen.
Post-Installation Troubleshooting
| Problem After Installation | Potential Cause | How to Fix It |
|---|---|---|
| Window moves slowly or struggles. | Insufficient power or a binding issue. | Check that the car battery is fully charged. Ensure the window glass is perfectly aligned in the tracks and not rubbing against the door frame or weatherstripping. |
| The window only moves in one direction. | Faulty switch or a wiring issue. | Temporarily plug in the old switch (if it was working). If the problem persists, re-check the wiring connector to the new motor for bent or loose pins. |
| There's a grinding or clicking noise. | The new regulator is not seated properly or the glass is loose. | Double-check that all regulator mounting bolts are tight. Ensure the bolts clamping the glass to the regulator are secure and that the glass isn't wobbling. |
| The window doesn't move at all. | No power getting to the motor. | Re-verify that the motor's electrical connector is snapped in all the way. Check the power window fuse in your vehicle's fuse box. |
If you run through these checks and the window operates smoothly, you're all set. Job well done
Handling Modern and Advanced Systems
Power window systems aren't the simple up-and-down mechanisms they used to be. If you're tackling a repair on a newer car, you're likely dealing with more than just a motor and a switch. Modern vehicles are packed with sophisticated electronics, including safety features and integrated control modules that add a few extra wrinkles to what seems like a straightforward fix.
These advanced systems are great for safety and convenience, but they also introduce new steps into the repair process that you absolutely cannot ignore.
Understanding Anti-Pinch Technology
One of the most common features you'll run into is the anti-pinch or auto-reverse function. This is a critical safety system that uses sensors to detect an obstruction—like a child's arm—in the window's path and instantly reverses its direction.
What was once a luxury feature is now pretty standard. The global market for these systems was valued at USD 3.86 billion and is expected to climb to USD 10.27 billion by 2034. That explosive growth shows just how common this technology has become. In fact, where these systems are mandatory, repair bills can run 20–30% higher because of the more complex parts. You can discover more insights about the anti-pinch power window system market and how it affects repairs.
Key Takeaway: The presence of an anti-pinch system means your job isn't done just because you bolted in the new motor. You have to "re-teach" the system its limits, or it won't work correctly.
Forgetting this last step is probably the number one reason DIYers think they've received a faulty part. They'll install a new motor, and the window will only move an inch at a time, refuse to go all the way up, or do nothing at all. Trust me, it's not a broken part; it's a system that's lost its memory and is waiting for instructions.
The Critical Re-Learning Process
Anytime you replace a window motor or even just disconnect the car's battery, the system's control module forgets the fully open and fully closed positions of the window. This "memory" is essential for the anti-pinch feature to work. To fix this, you have to perform a re-learning or recalibration procedure.
The good news is that you typically don't need any special scan tools—just the window switch on the door. While the exact steps can vary a bit between manufacturers, the general idea is almost always the same.
A very common recalibration method looks like this:
- Roll the window all the way down. Press and hold the "down" button until the window is fully open. Keep holding it for another 5-10 seconds after it stops.
- Now, roll it all the way up. Immediately pull and hold the "up" button until the window is completely closed. Just like before, keep holding it for an extra 5-10 seconds.
- Test it out. Let go of the button and test the "auto-up" and "auto-down" functions. If the window zips all the way up or down with a single firm press, you're all set.
This simple sequence teaches the control module the upper and lower limits of the window's travel, bringing the one-touch and anti-pinch features back online.
Finding the Right Procedure for Your Car
While that hold-down-hold-up method works for a ton of vehicles, it's not a one-size-fits-all solution. Some cars might have a slightly different button sequence or require you to cycle the ignition. So, where do you find the specific instructions for your ride?
- Your Owner's Manual: This is always the best place to start. Flip to the index and look for "Power Windows" or "Battery Replacement."
- Online Forums: Vehicle-specific forums are a goldmine. A quick search for something like "[Your Car Model] window reset procedure" will almost always turn up a guide from someone who's been there and done that.
- Repair Manuals: Professional services like AllDataDIY or a classic Haynes manual will give you the exact, factory-specified procedure.
Taking a few minutes to find the correct process will save you the massive headache of putting your door panel back on, only to discover the window is still acting up. It's this final step that makes the difference between a frustrating job and a successful, professional-quality repair.
A Few Final Questions You Might Have
Even with the job done and your window rolling up and down smoothly, a few questions might pop into your head. That's completely normal, especially if this was your first time diving into a door panel. Let's tackle some of the most common things people wonder about after fixing their power window.
Think of this as tying up the loose ends. We'll cover everything from how much money you just saved to what those awful noises really meant. It’s all about making sure you feel 100% confident in the work you just accomplished.
How Much Money Did I Really Save Doing This Myself?
This is the best part. The savings you pocket from a DIY window repair are huge, and it's one of the biggest reasons people decide to give it a shot.
A good quality aftermarket regulator and motor assembly will typically run you between $50 and $150. Compare that to what a repair shop or dealership charges, which can easily be anywhere from $250 to over $400. The shop isn't just charging for the part; they're charging for labor, which often hits $100 to $200 per hour. The money you saved on this one job alone is probably enough to buy a solid set of tools you'll use for years.
That Awful Grinding Noise I Heard… Was That the Motor?
This is one of the most common misconceptions out there. That horrible grinding, crunching, or rapid-fire clicking sound almost never points to the motor itself. It's the classic death rattle of a failed window regulator.
What you're actually hearing is the sound of stripped plastic gears or, more commonly, a shredded metal cable that has jumped off its pulley and is getting chewed up inside the door. The motor is probably still trying to do its job, but the mechanical part of the system—the regulator—is what's self-destructing and making all the racket.
The key takeaway: A grinding sound is your number one clue that the regulator is the real villain. The only proper fix is to replace the entire regulator and motor assembly.
Help! All of My Power Windows Stopped Working at Once.
When every single window dies at the same time, it feels like a major electrical disaster. But don't panic. It's practically impossible for all four motors to fail at the exact same second. This is almost certainly a central electrical issue.
Before you start tearing all your doors apart, check these simple things first:
- The Window Lock Button: Seriously, check it. It's on the driver's door, and it's designed to do exactly this. We've all hit it by accident.
- The Main Fuse: Your power windows are all on one circuit. Pop open your fuse box (check your owner's manual for the location) and check the main power window fuse. A single blown fuse will take them all out.
- The Master Switch: If the fuse is good, the master switch on the driver's door is the next likely culprit. Since it controls everything, an internal failure can kill the whole system.
Can I Get Away With Just Replacing the Motor?
It really depends on how old your car is. On some vehicles, especially from the '90s and early 2000s, the motor was a separate part you could unbolt from the regulator.
But for the vast majority of modern cars, that's no longer the case. The motor and regulator are built, sold, and installed as a single, unified assembly. They simply aren't designed to be separated. Trying to Frankenstein the old regulator with a new motor is a recipe for frustration and often leads to a broken part.
For a reliable fix that you won't have to redo in six months, your best bet is always to replace the entire assembly. It’s faster, simpler, and the only way to ensure everything works together as it should. Always check the parts for your specific car to see how they’re sold.
